Mobile Soybean Extrusion Unit for Sale

Description: The Processing unit extrudes and presses soybeans (or oilseeds) into soybean meal and oil. It is an operational self-contained unit with process controls in a 53’ van trailer. It has a rated processing capacity of 3600 lbs. of soybeans per hour. The unit has 2 extruders, 2 presses, a cooling drum, roller mill, oil recycling system, oil storage tank and conveying and process control equipment. 3 phase 480volt power, can use Generator or Grid power.

Equipment Detail:

2004 Freightliner Columbia Semi Tractor, Series 120, 12.8L Diesel

2000 Kentucky Semi Trailer, 53’ step deck, outside foam insulation and sheeting

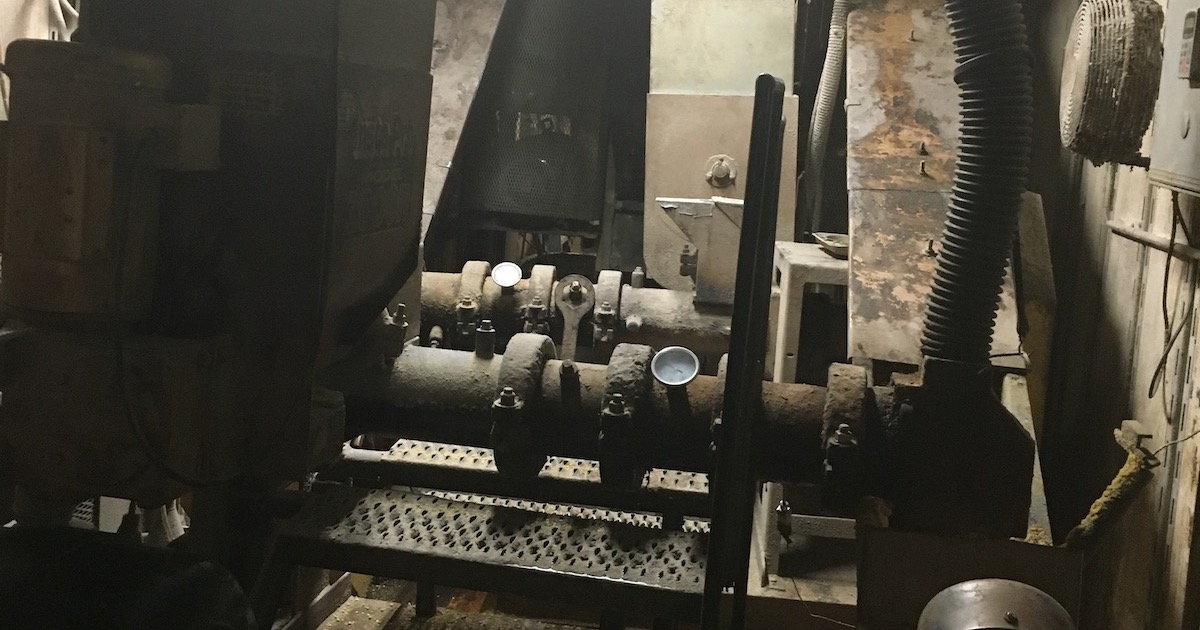

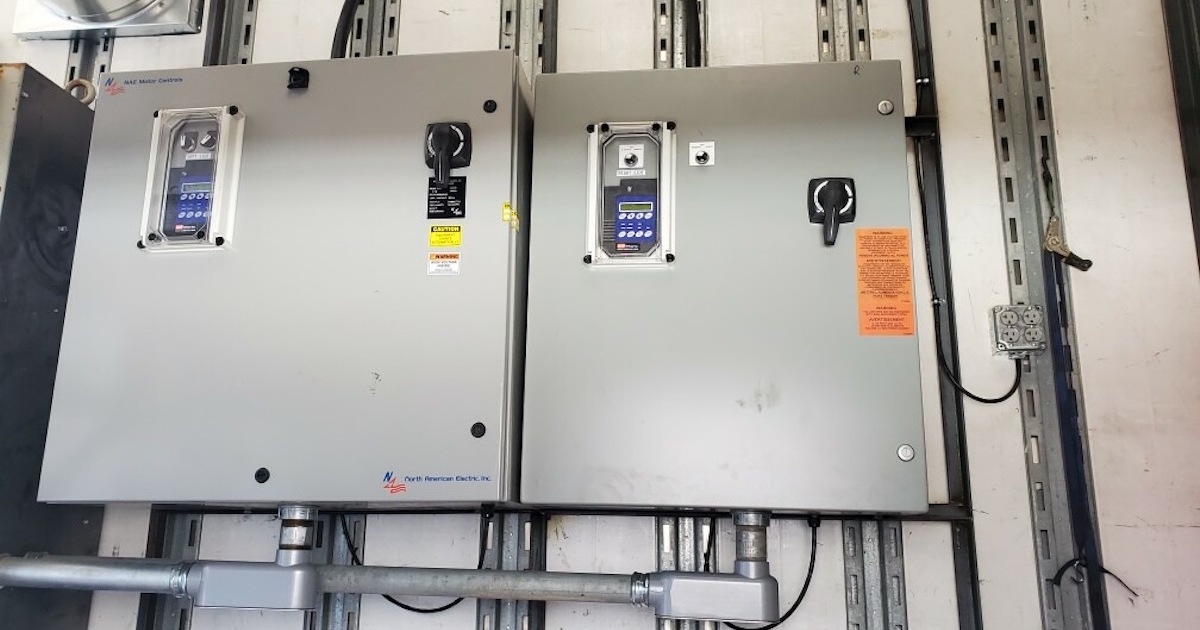

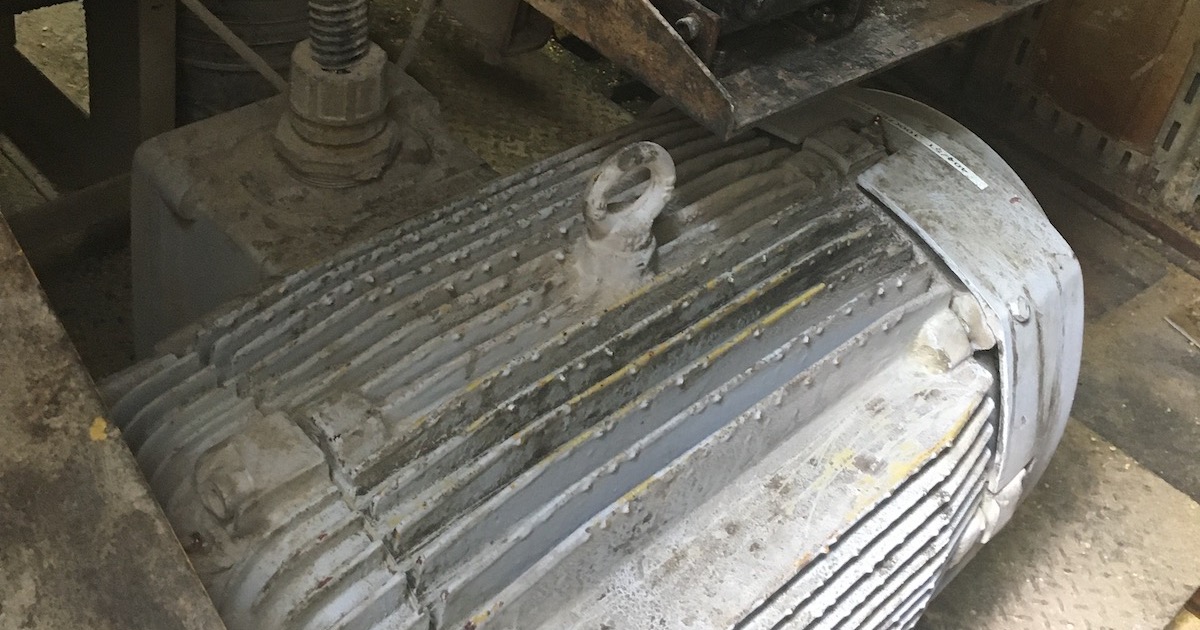

Insta-Pro Model 2000R 4 Head and Conex Model 5000 4RC extruders (interchangeable parts), 100HP Motors, 1hp hopper feeders, control boxes, temperature probes, 1 hp VFD’s

Soft Start Control Panel 100HP W/: 400 A disconnect, 225 Amp Eaton Breaker, Eaton S811+ Soft Start with DIM, Full Integration to B&R Control System, Nema 4/12 48x36x12 Enclosure

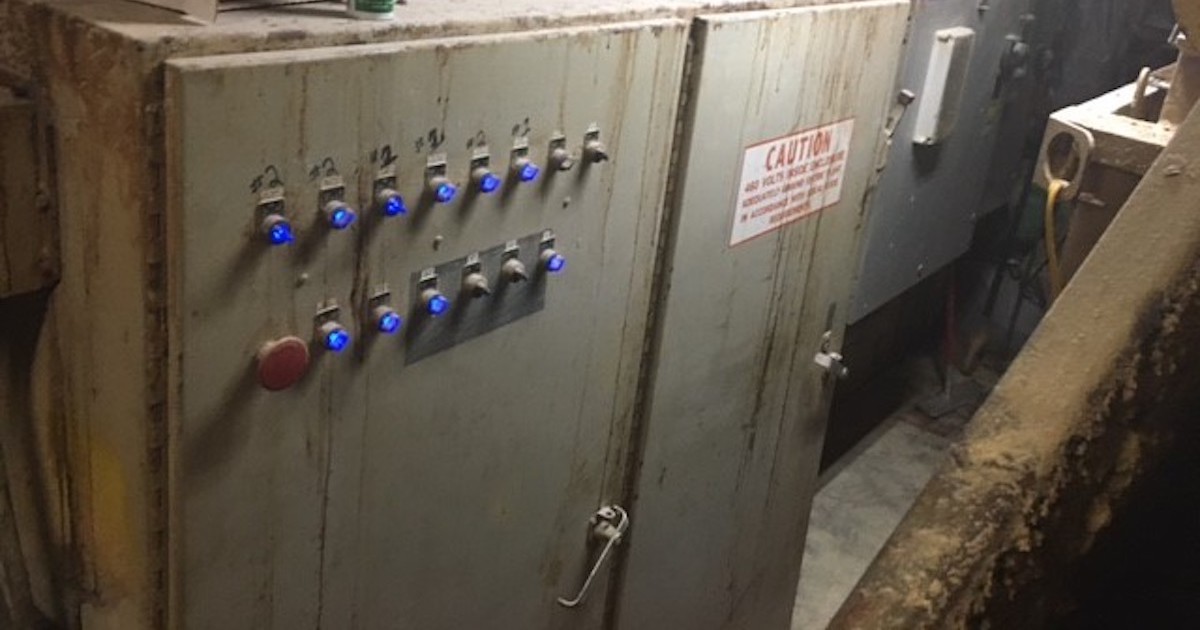

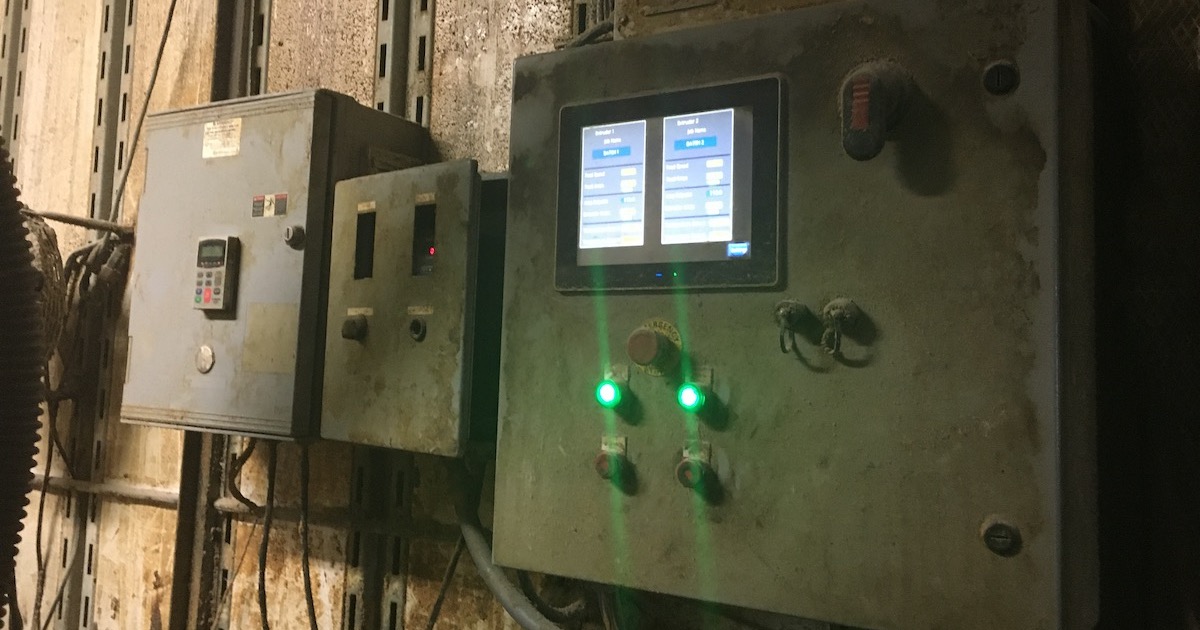

Multi-System Extruder Control Power Panel 10.1″, HMI Touch Screen for multiple extruder monitoring & master control PLC w/Powerlink, RS232 Interfaces -Data Logging: Utilization %, AMP Loads, Overload, Throughput, Hours, E-STOP COND -Email Reports, Alarms

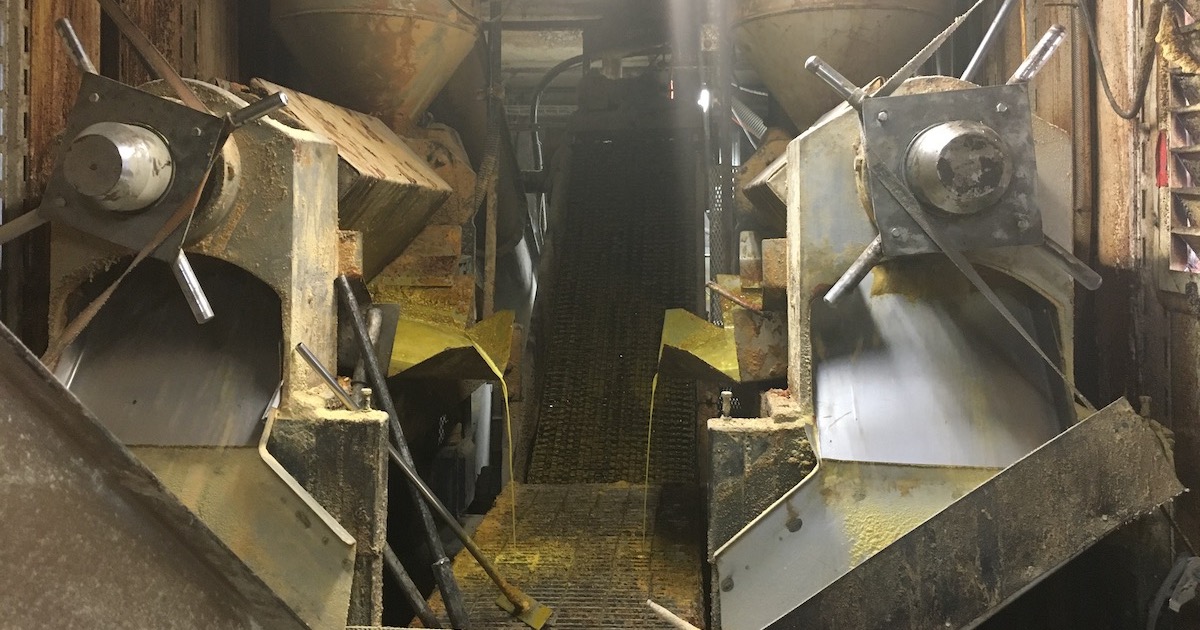

2 – 20 Ton 6 YL-165 Presses (Henan Elephant Machine) 50HP 3-phase motors, Stands, Belts, Pulleys, Guards, Meal Cutters, Updated gear boxes

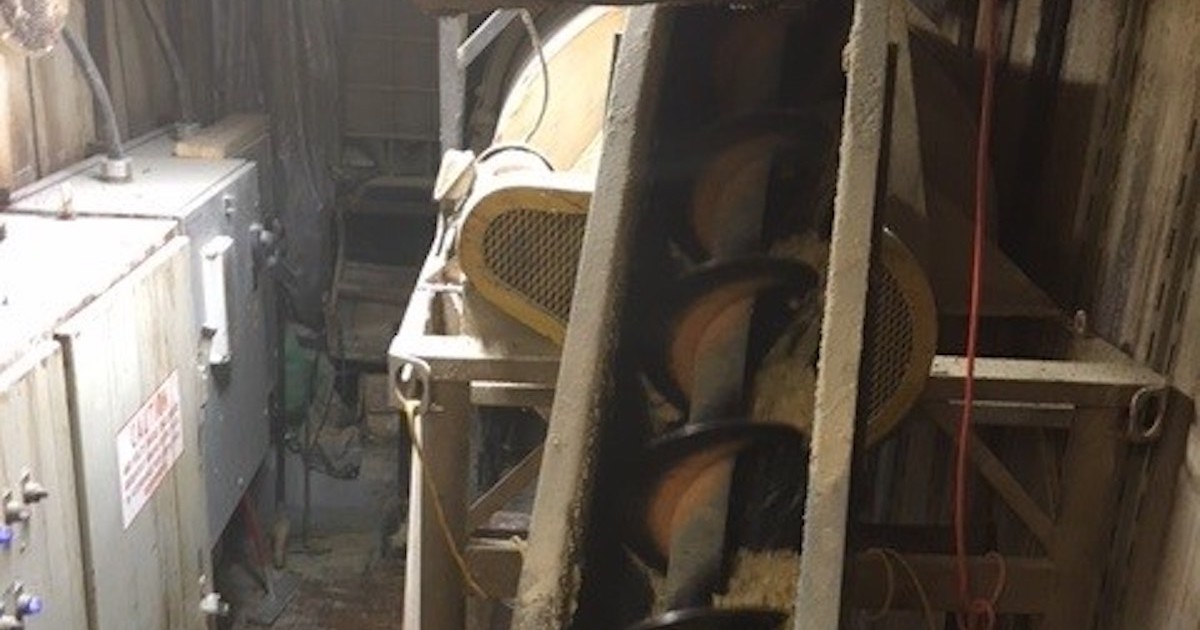

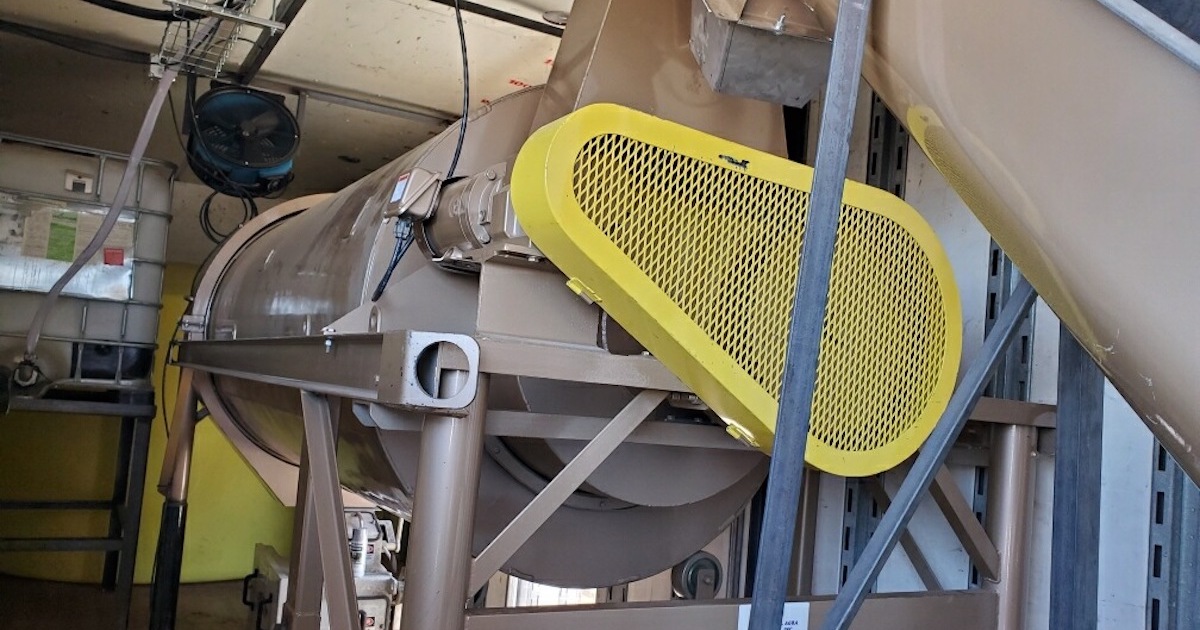

Tumble Cooler- 4’ diameter x 8’ length Tumble cooler, Horizontal Product Receiver Cyclone 42″ Dia. X 48″ Long Inlet 6″x 15″ 12″ DIA. Air Out 10”, Product Mac Airlock Model MD-20 8”x 8” Stainless with Drive

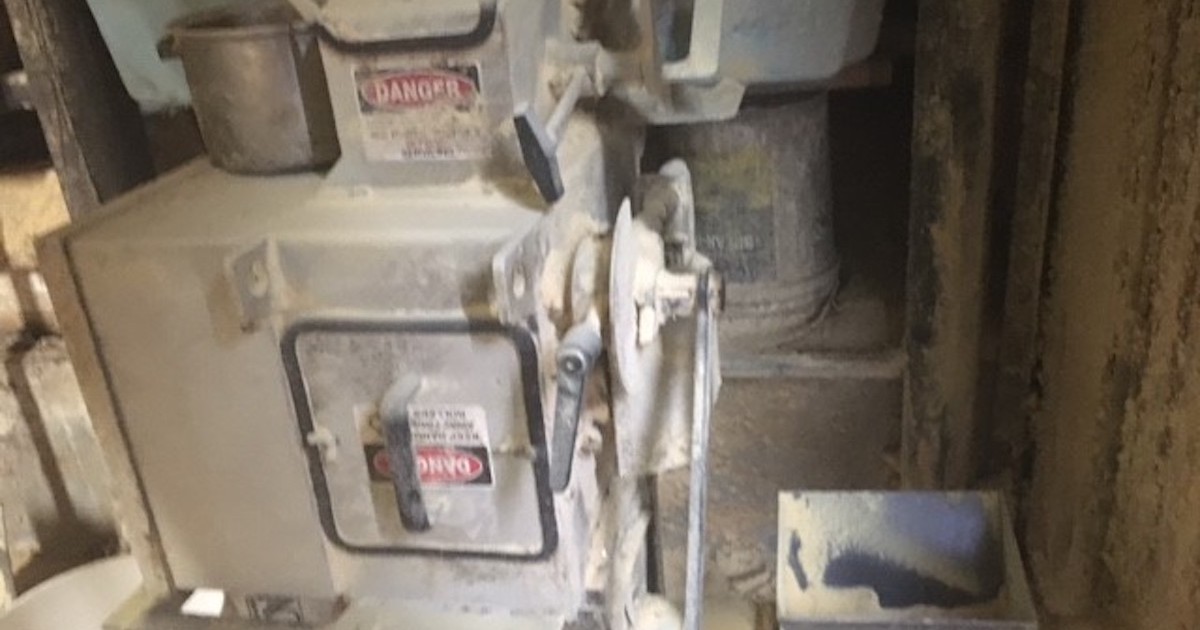

Lonestar 6X8 Roller Mill

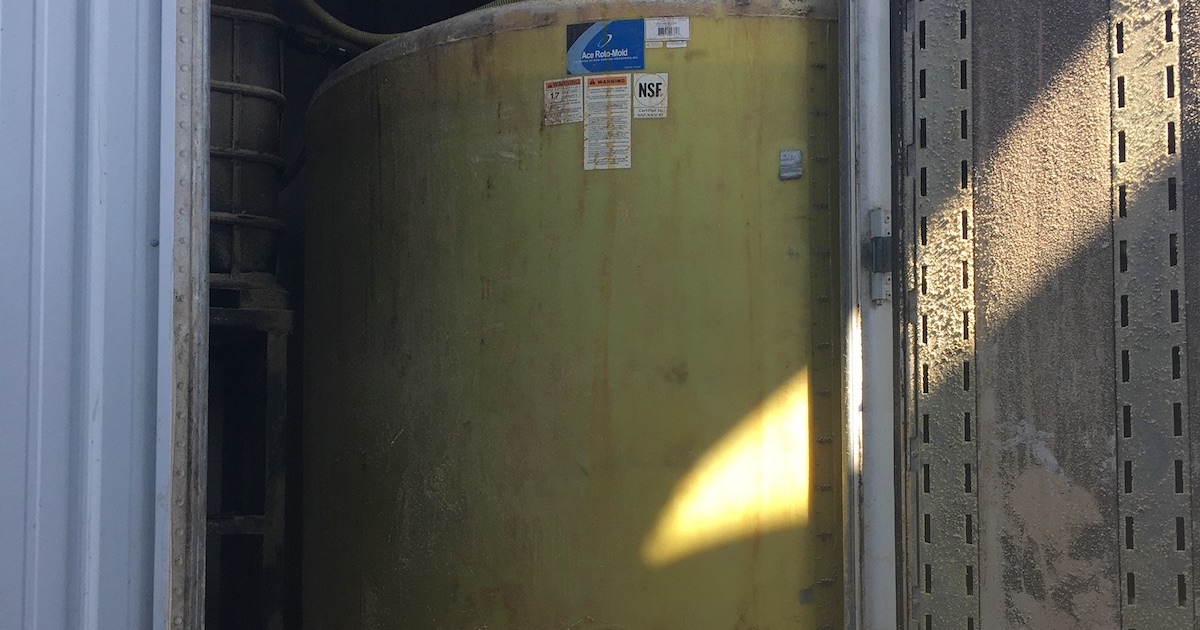

1600-Gallon Poly Storage Tank
Custom Tank, Drive and Oil Foots Recycle System- Walder Mfg.

Additional Equipment:

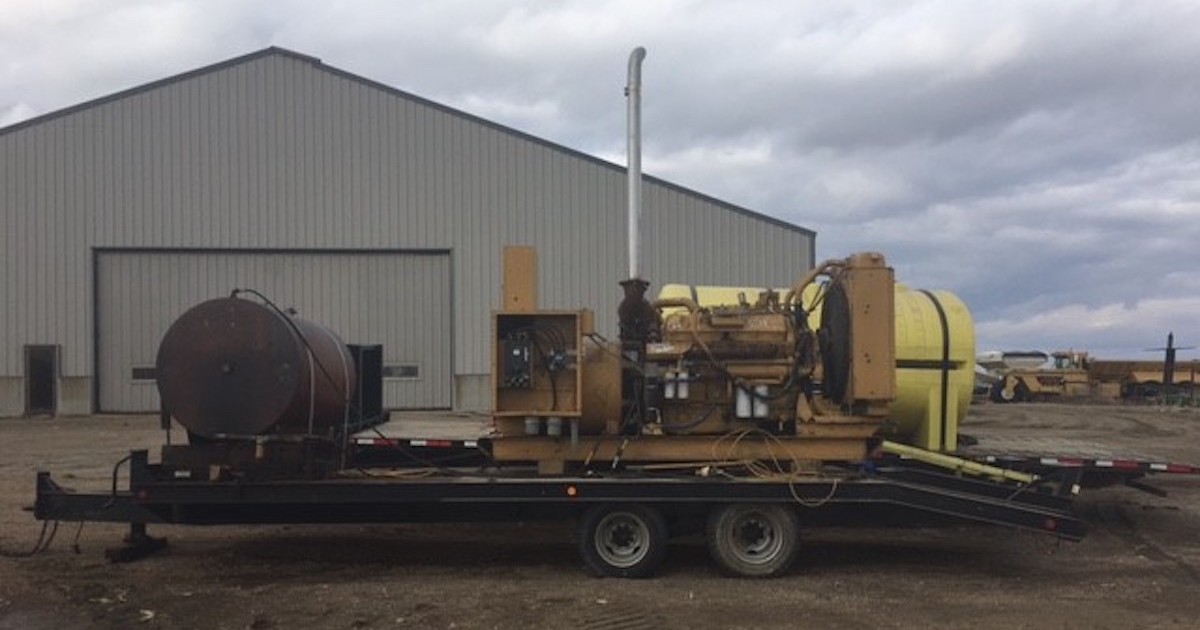

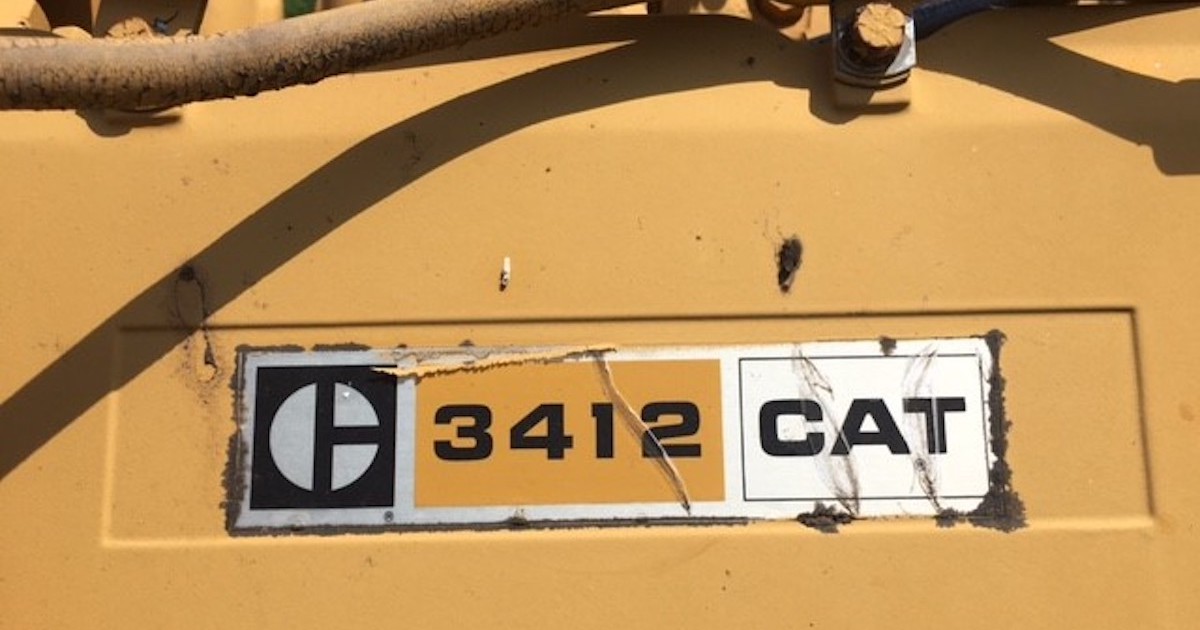

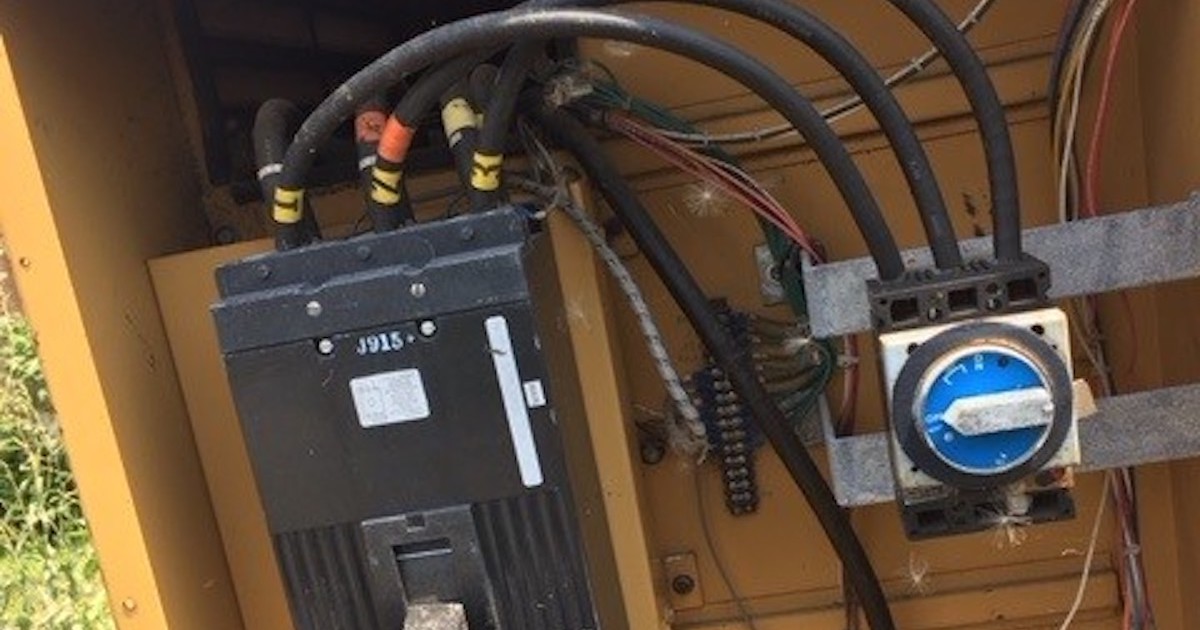

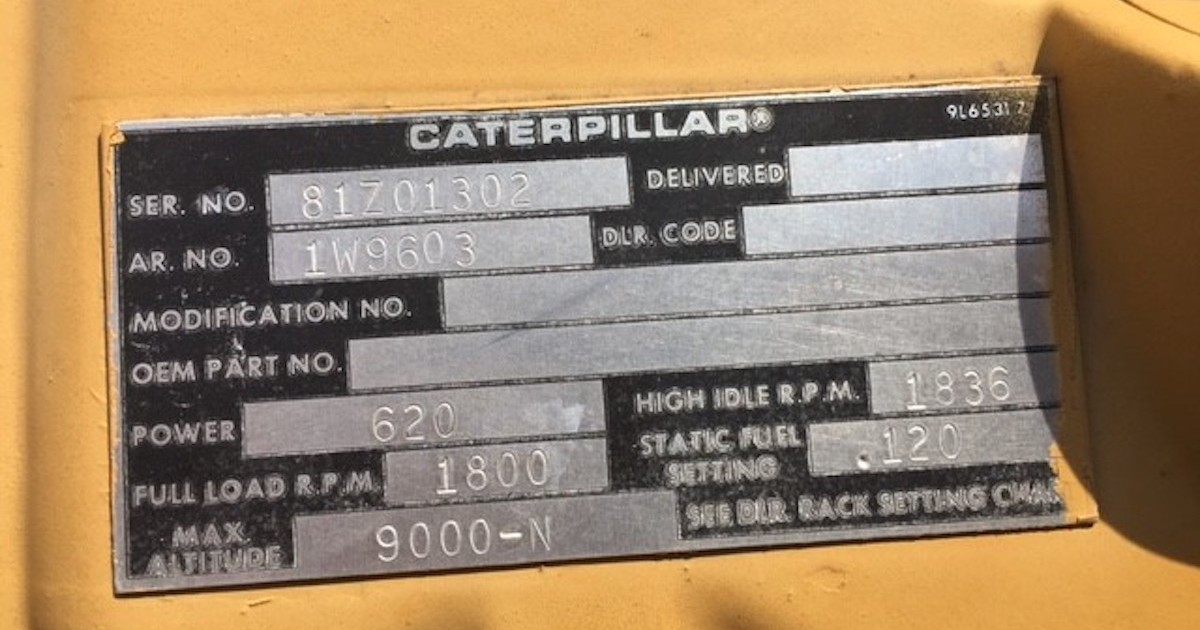

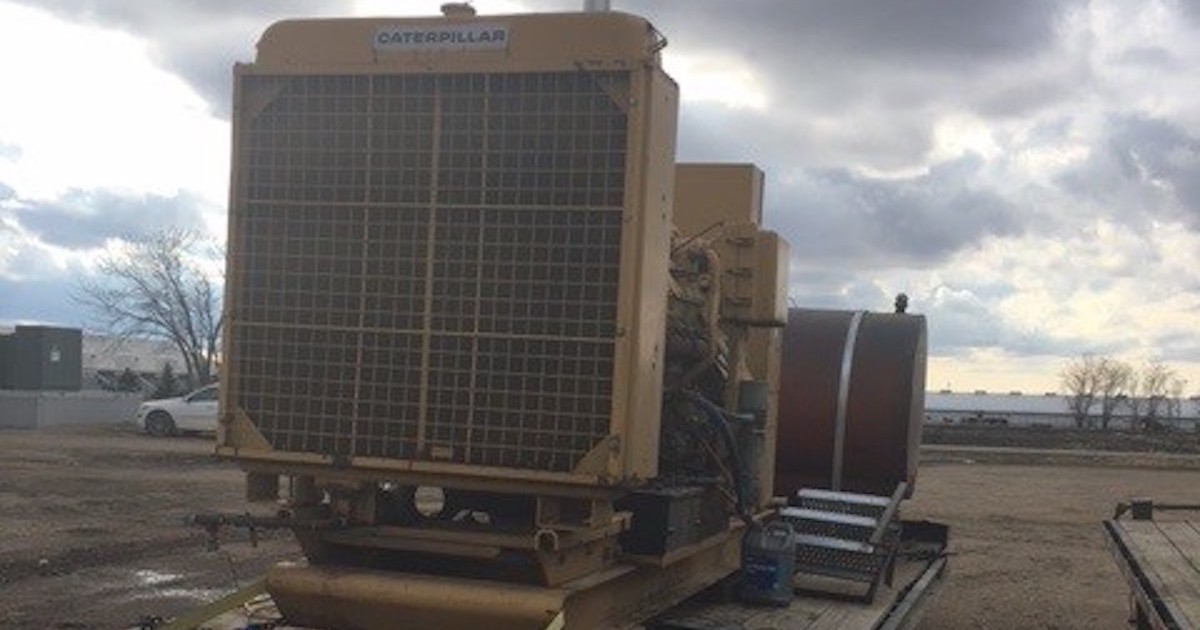

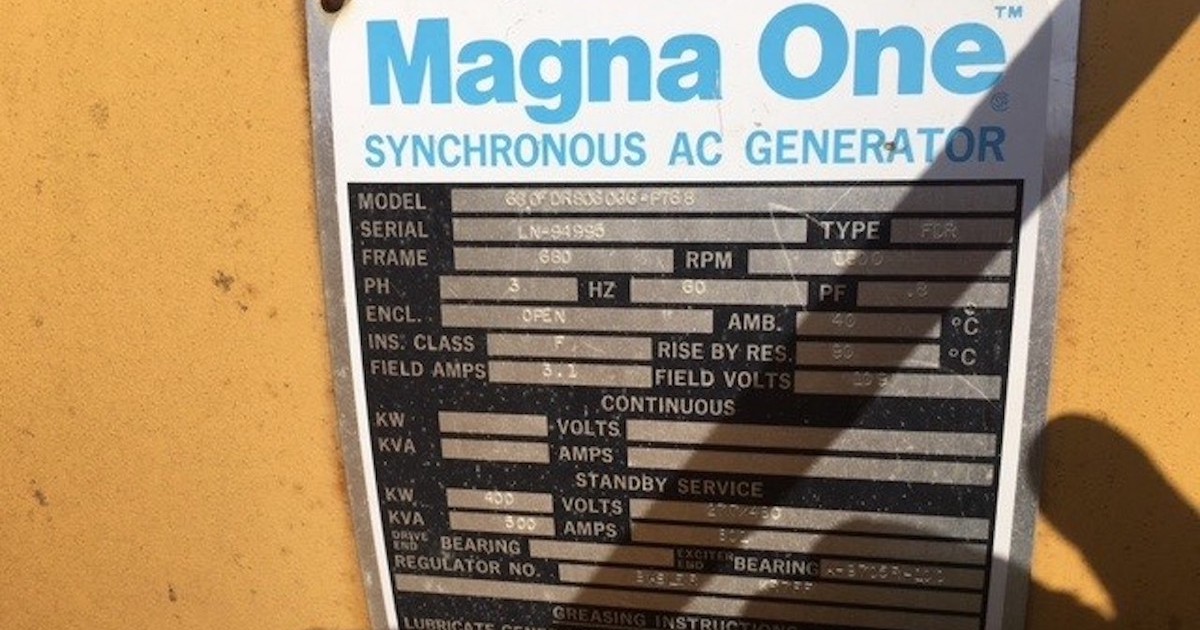

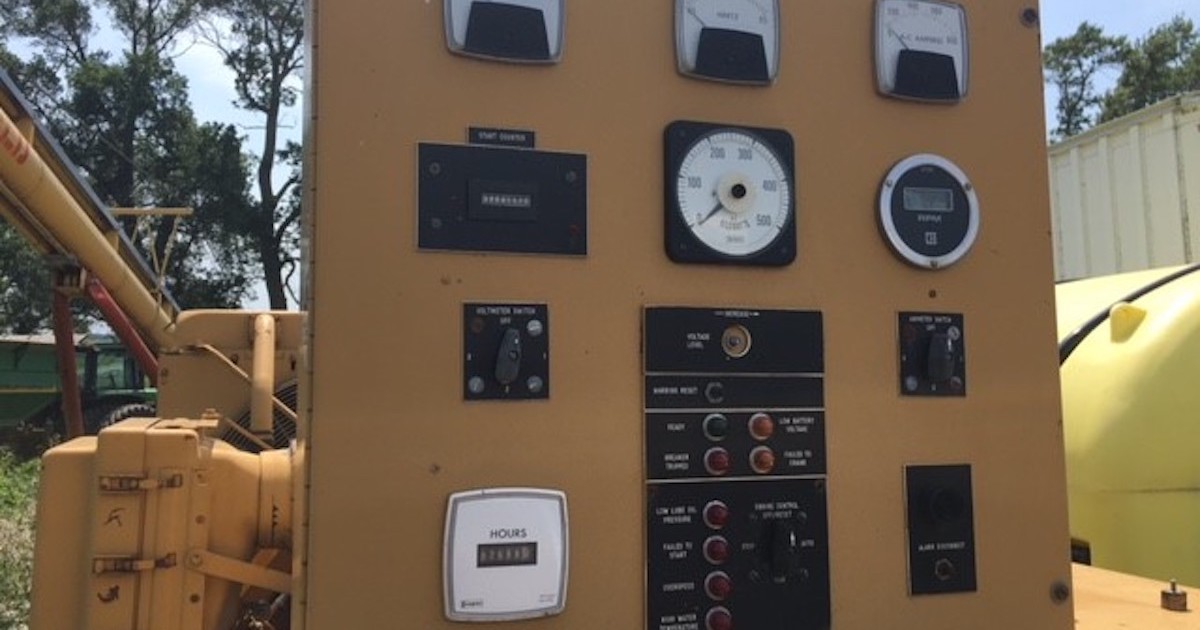

Caterpillar 1982 3412 Diesel Generator- 400KW, 620 hp at 1800 rpm, 3/60/277/480V, 10 lead reconnectable to other voltages. 800Amp main-line circuit breaker, Dual coolant heaters, Open power unit with engine driven radiator, w/ 1995 Redi trailer, and 500 gallon fuel tank

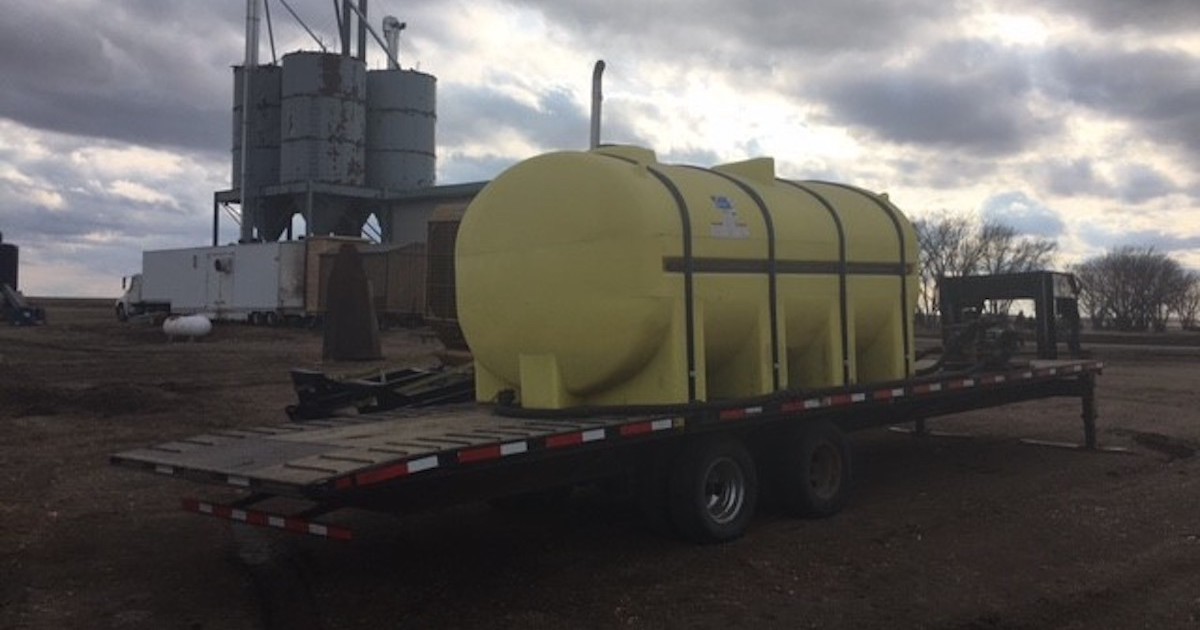

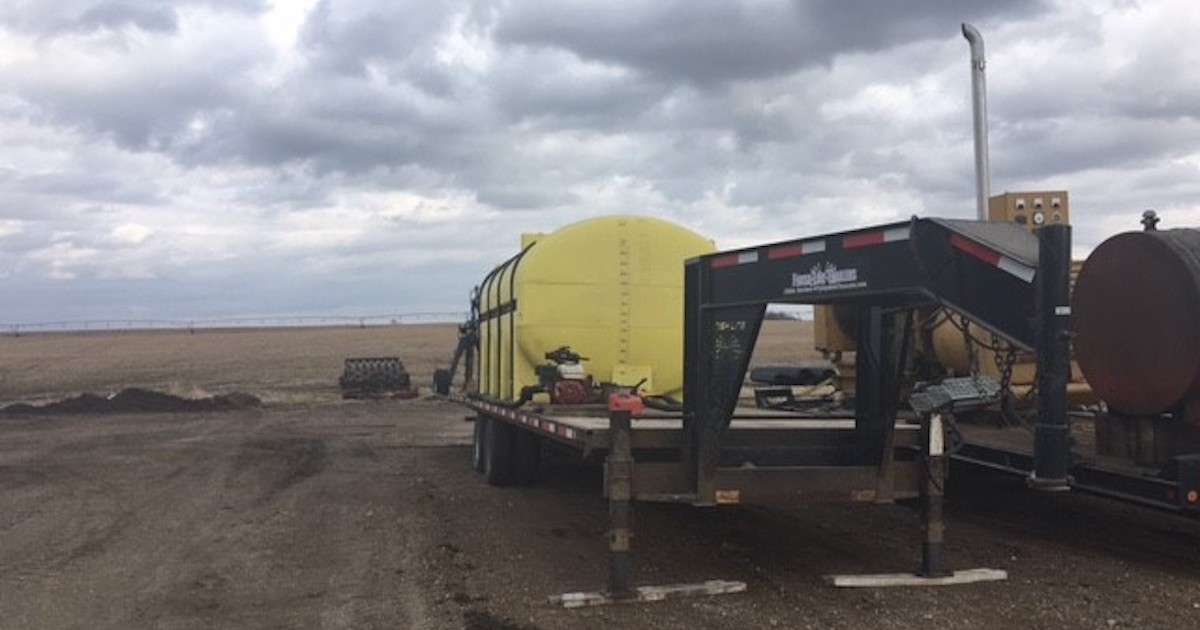

Oil Storage Tank – 3250 Gallon Poly Free Standing Tank, Honda 6 HP engine, pump, hoses & fittings, mounted on 2013 Red Oak Trailer, 102″ x 32′ GN,

Ross Hammer Mill -18” Wide x 10” Dia. 25HP, 5.5″ x 4” Inlet

Call Nancy at (651) 398-6873 for more details and to make an offer!

ALL REASONABLE OFFERS WILL BE CONSIDERED!
